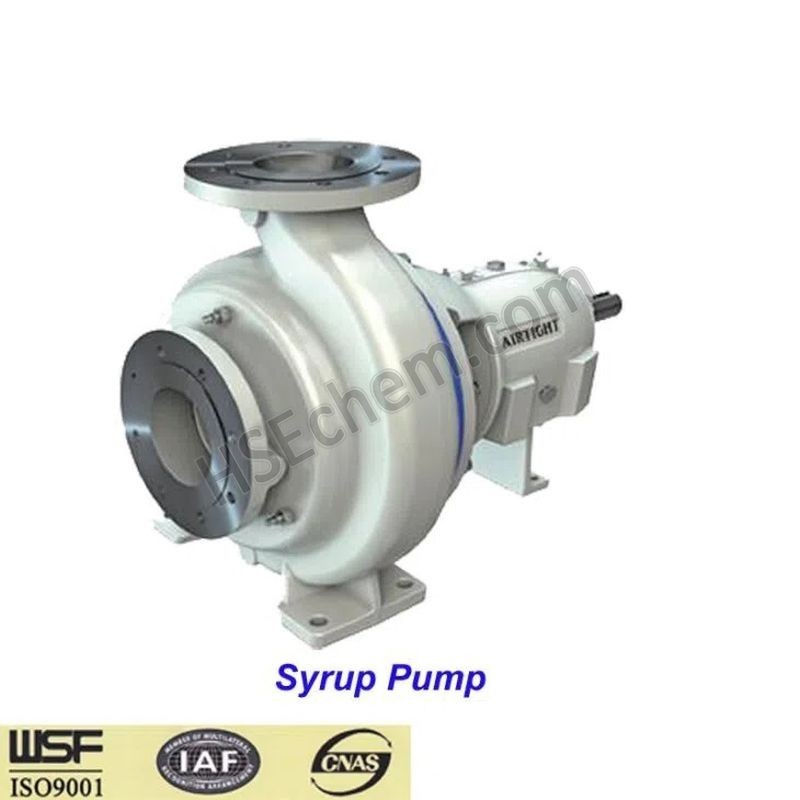

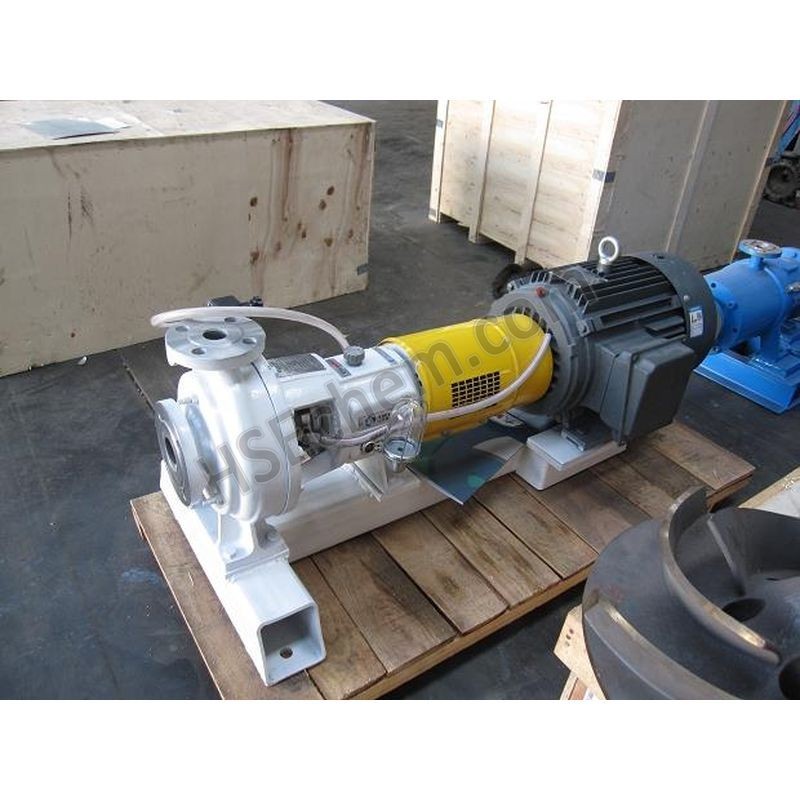

Key: syrup pump
Over view
AK Single-stage spiral casing pump with closed impeller, open impeller, special open impeller, Low pulse impeller, according to ISO 2858. For clean, slightly contaminated and aggressive liquids up to a viscosity of 150 mm2/s with variuous application.
Low impulse impeller
Capacity: up to 700 m3/h
Head: up to 160 m
pressure: up to 1.6Mpa
Operating temperature: up to 360 ?C
Application
1.AK series are designed for pumping fluid contains solid particles at low or high temperature application.
2.Sludge & paper pulp
3/Sewage & waste water
4.Viscous liquids / fibrous material
5.Contaminated process liquids
6.Strained/unstrained juice
Features
Closed Impeller is used for pumping clean liquids or liquids containing some impurities.
Open Impeller is designed for liquids containing so- lid particles, abrasive liquids or stock up to 8 % consistency.
Special Open Impeller is suitable for liquids containing big- ger solid particles and long fibers, abrasive liquids or stock up to 8% consistency.
Low Pulse Impeller is designed and manufactured to mi- nimize pressure pulsations.
Standard material options:
ASTM A890 3A，ASTM A747 CB7Cu-2，ASTM A532 IIIA
We supply pumps and parts to fit or replace various OEM pumps. Any use of OEM names, trademarks, model numbers, or part numbers is for reference only and does not necessarily imply that we are an authorized distributor or representative of the companies and brands listed.
Over view
AK Single-stage spiral casing pump with closed impeller, open impeller, special open impeller, Low pulse impeller, according to ISO 2858. For clean, slightly contaminated and aggressive liquids up to a viscosity of 150 mm2/s with variuous application.
Low impulse impeller
Capacity: up to 700 m3/h
Head: up to 160 m
pressure: up to 1.6Mpa
Operating temperature: up to 360 ?C
Application
1.AK series are designed for pumping fluid contains solid particles at low or high temperature application.
2.Sludge & paper pulp
3/Sewage & waste water
4.Viscous liquids / fibrous material
5.Contaminated process liquids
6.Strained/unstrained juice
Features
Closed Impeller is used for pumping clean liquids or liquids containing some impurities.
Open Impeller is designed for liquids containing so- lid particles, abrasive liquids or stock up to 8 % consistency.
Special Open Impeller is suitable for liquids containing big- ger solid particles and long fibers, abrasive liquids or stock up to 8% consistency.
Low Pulse Impeller is designed and manufactured to mi- nimize pressure pulsations.
Standard material options:
ASTM A890 3A，ASTM A747 CB7Cu-2，ASTM A532 IIIA
We supply pumps and parts to fit or replace various OEM pumps. Any use of OEM names, trademarks, model numbers, or part numbers is for reference only and does not necessarily imply that we are an authorized distributor or representative of the companies and brands listed.
