Description

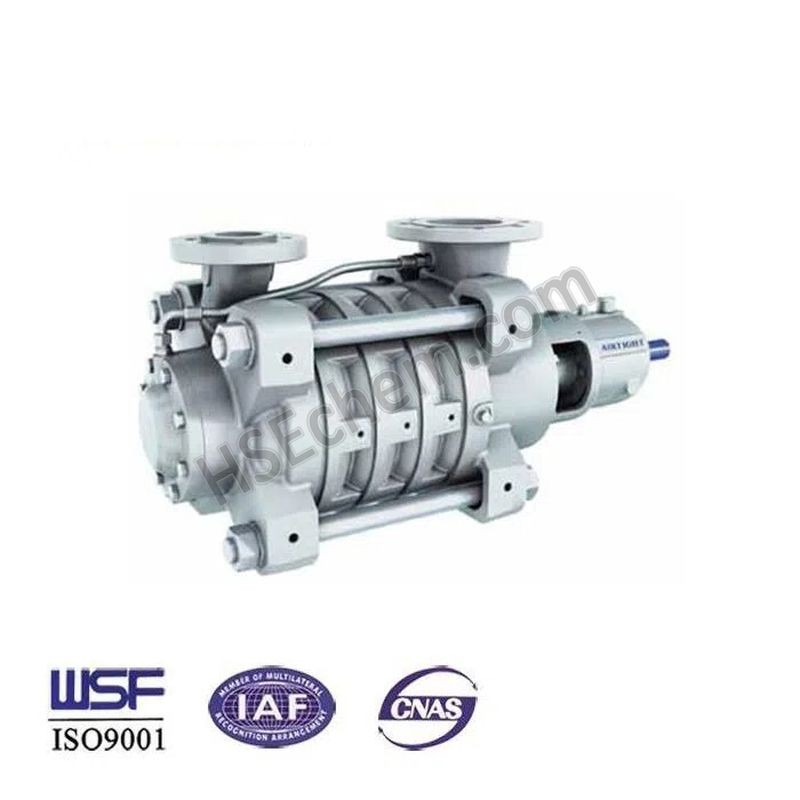

DBN Boiler feed water pump for MBN pump
The DBN pumps are horizontal, radially spilt, ring section pumps with a modular design. They are suitable for pumping clean or slightly polluted, hot or cold, chemically netural or aggressive liquids. They fulfill all requirements wherever a robust pump for high pressure applications is needed, such as:
Boiler feed duties in industrial power applications up to 180℃
Condensate service in power satations and industrial plants
Feed pumps in desalination by RO film
Shower water in paper mills
High pressure water in general industry
Impellers
Special suction impeller for low Net positive suction head required (NPSHr)
High quality investment cast impellers and stage casings for better efficiency
Polygon immpeller mounting allows fast and easy mounting of the impeller on the shaft, maintains straighteness of the shaft, decreases deflection and stress points and eliminates the need of standard keyed design
Mechanical design
Keyless polygon shaft torque transmission to the impeller
Split ring fixing for immpeller stack to accommodate thermal expansion
Innovative journal bearing dedign for better internal alignment and lubrication
Bearing unit
Double row ball radial and thrust bearing located at drive end (DE)
4 bearing units serve 6 hydraulics
Same bearing housing for both oil and grease lubrication
Increased oil sump for better heat disdipation
Constant level oiler maintains optimum oil level
Shaft sealing
Shaft sealing only required on the low pressure suction side
Separate seal chamber enables the seal type to be changed without having to replace the suction casing
Mechanical seal(Single and double),dynamic seal and gland packing are available
Shaft seal can be serviced without disassembling
Hot Tags: dbn boiler feed water pump for sulzer mbn, China, suppliers, manufacturers, factory, customized, low price, in stock, buy discount, made in China, high temp magnetic drive pump, self-priming pump sulzer, magnetic drive pump manufacturers in ahmedabad, Single Stage Brine Pump, Shaft Replacements, magnetic drive pump video
We supply pumps and parts to fit or replace various OEM pumps. Any use of OEM names, trademarks, model numbers, or part numbers is for reference only and does not necessarily imply that we are an authorized distributor or representative of the companies and brands listed.
The DBN pumps are horizontal, radially spilt, ring section pumps with a modular design. They are suitable for pumping clean or slightly polluted, hot or cold, chemically netural or aggressive liquids. They fulfill all requirements wherever a robust pump for high pressure applications is needed, such as:
Boiler feed duties in industrial power applications up to 180℃
Condensate service in power satations and industrial plants
Feed pumps in desalination by RO film
Shower water in paper mills
High pressure water in general industry
Impellers
Special suction impeller for low Net positive suction head required (NPSHr)
High quality investment cast impellers and stage casings for better efficiency
Polygon immpeller mounting allows fast and easy mounting of the impeller on the shaft, maintains straighteness of the shaft, decreases deflection and stress points and eliminates the need of standard keyed design
Mechanical design
Keyless polygon shaft torque transmission to the impeller
Split ring fixing for immpeller stack to accommodate thermal expansion
Innovative journal bearing dedign for better internal alignment and lubrication
Bearing unit
Double row ball radial and thrust bearing located at drive end (DE)
4 bearing units serve 6 hydraulics
Same bearing housing for both oil and grease lubrication
Increased oil sump for better heat disdipation
Constant level oiler maintains optimum oil level
Shaft sealing
Shaft sealing only required on the low pressure suction side
Separate seal chamber enables the seal type to be changed without having to replace the suction casing
Mechanical seal(Single and double),dynamic seal and gland packing are available
Shaft seal can be serviced without disassembling
Hot Tags: dbn boiler feed water pump for sulzer mbn, China, suppliers, manufacturers, factory, customized, low price, in stock, buy discount, made in China, high temp magnetic drive pump, self-priming pump sulzer, magnetic drive pump manufacturers in ahmedabad, Single Stage Brine Pump, Shaft Replacements, magnetic drive pump video
We supply pumps and parts to fit or replace various OEM pumps. Any use of OEM names, trademarks, model numbers, or part numbers is for reference only and does not necessarily imply that we are an authorized distributor or representative of the companies and brands listed.
