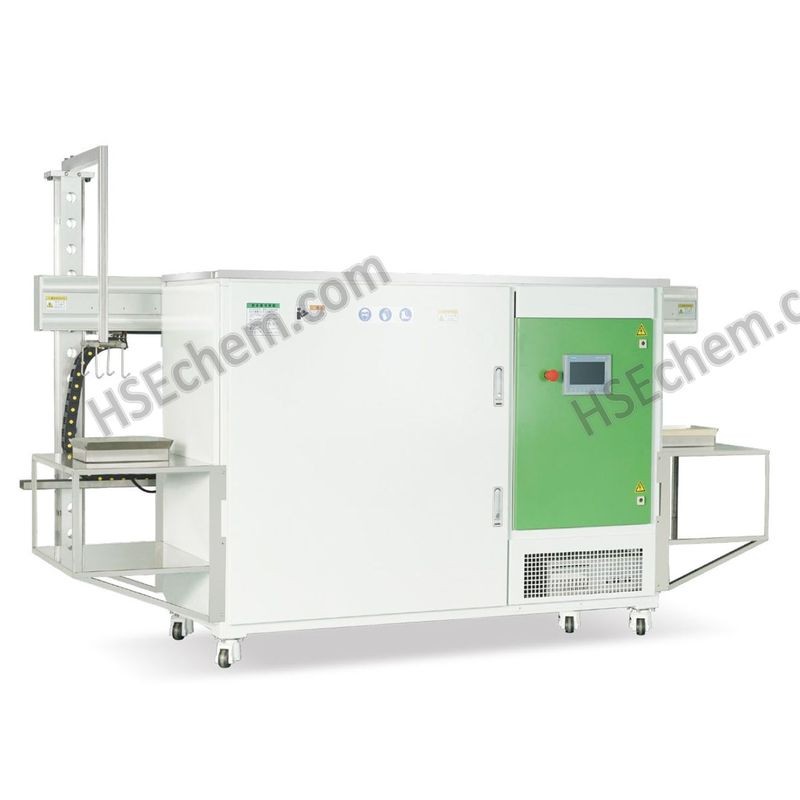

Introduction of Co-Solvent or so called Dual Solvent cleaning system

Product features

1. The cleaning effect of non cleaning flux for semiconductor, micro assembly, microelectronics and microwave components is more obvious.

2. Cleaning of aerospace, military, medical, automotive electronics and other precision products.

3. Unique mixed solvent, high-precision liquid level and temperature control are adopted to ensure the cleanness and stability of the equipment.

4. Segmented heating and solvent rapid refrigeration; Improve cleaning efficiency and reduce energy consumption.

5. More environmentally friendly, safer, healthier, no ozone depletion potential.

6. Without the use of ultrasound, it can meet the requirements of aerospace, medical, automotive electronics, military and other industries.

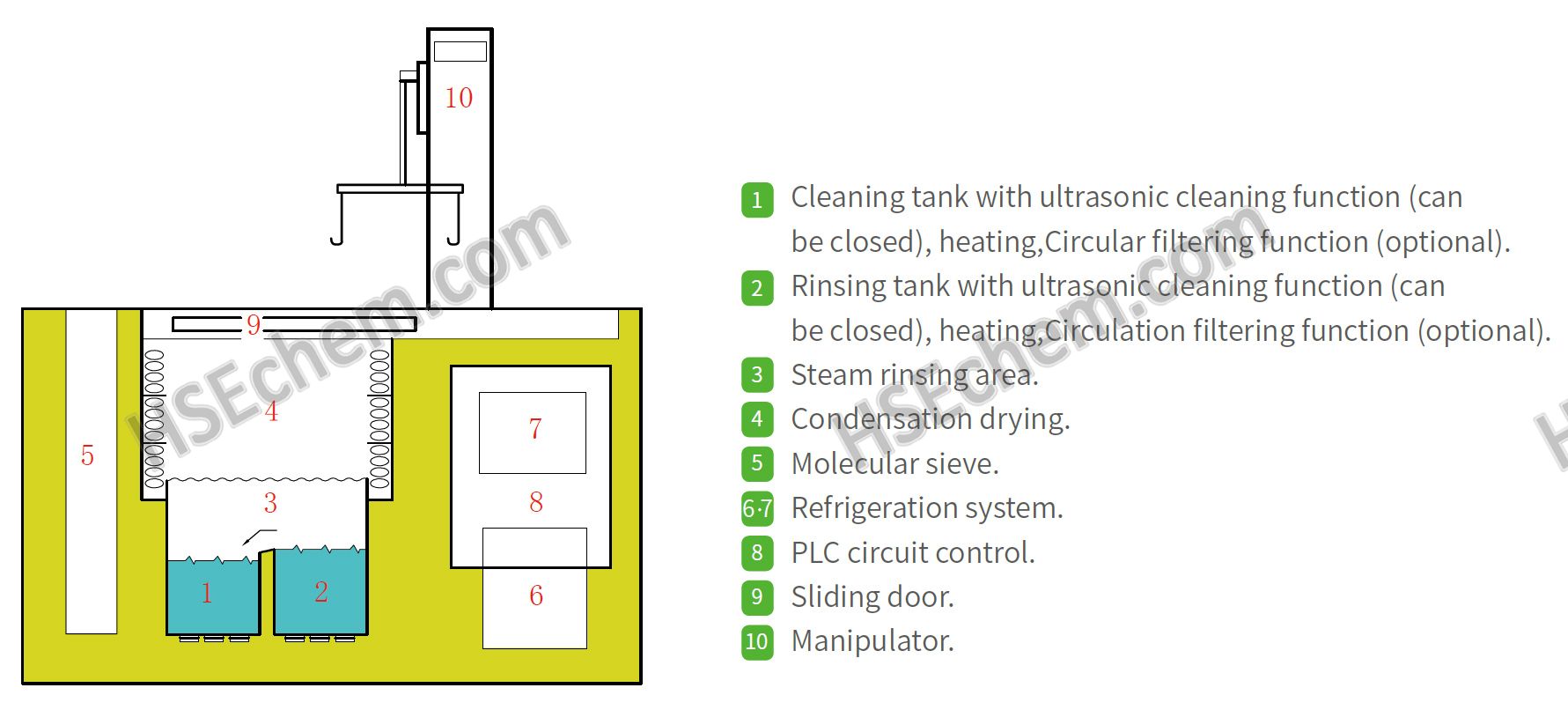

Working principle of precision cleaning

The Co-solvent system manufactured by Casisy has four process stages, including ultrasonic cleaning, ultrasonic rinsing, steam rinsing, and condensation drying. It has a unique solvent retention function and provides economic benefits.

It is done in a tank with or without ultrasonic cleaning, by immersing the components in the solvent mixture. The solvent is carefully chose by Casisy to adapt to the customer's special application, whether it is from experience or product component performance evaluation cleaning test, the combination of solvents can remove dirt on the product.

Both the washing tank and the rinsing tank provide solvent heating and pumping closed-loop filtration systems respectively. The cleaning tank is electrically heated and has a unique pulse control operation that allows the solvent to boil effectively while minimizing solvent emissions. After the primary rinsing of the rinsing tank, it is rinsed in the steam zone above the two tanks containing pure distillation solvent, and then condensed and dried. The distilled solvent is condensed by the primary cooling plate and returned to the rinsing tank through a water separator. The replacement will be contaminated The solvent is introduced into the boiling water tank to ensure that the rinsing tank maintains a controlled cleanliness.

The unique solvent retention characteristics of the Casisy series include three-circuit reflux cooling, steam rupture, condensation drying, and optional automatic liquid filling and solvent detection. These ensure the safety of the system and fully comply with environmental and safety regulations. These design features also mean Casisy The system is predictable for solvent operating usage and customers enjoy low operating costs.

The Co-solvent process is suitable for precision cleaning of precision parts such as semiconductors, aerospace, medical, electronics, etc. The technology meets the requirements of high cleanliness, and avoids incomplete cleaning that affects product safety and life. Ultrasonic Co-solvent cleaning technology has no restriction on the shape of the workpiece, which can dissolve contaminants while preventing excessive corrosion, with stronger cleaning power and softer cleaning process.

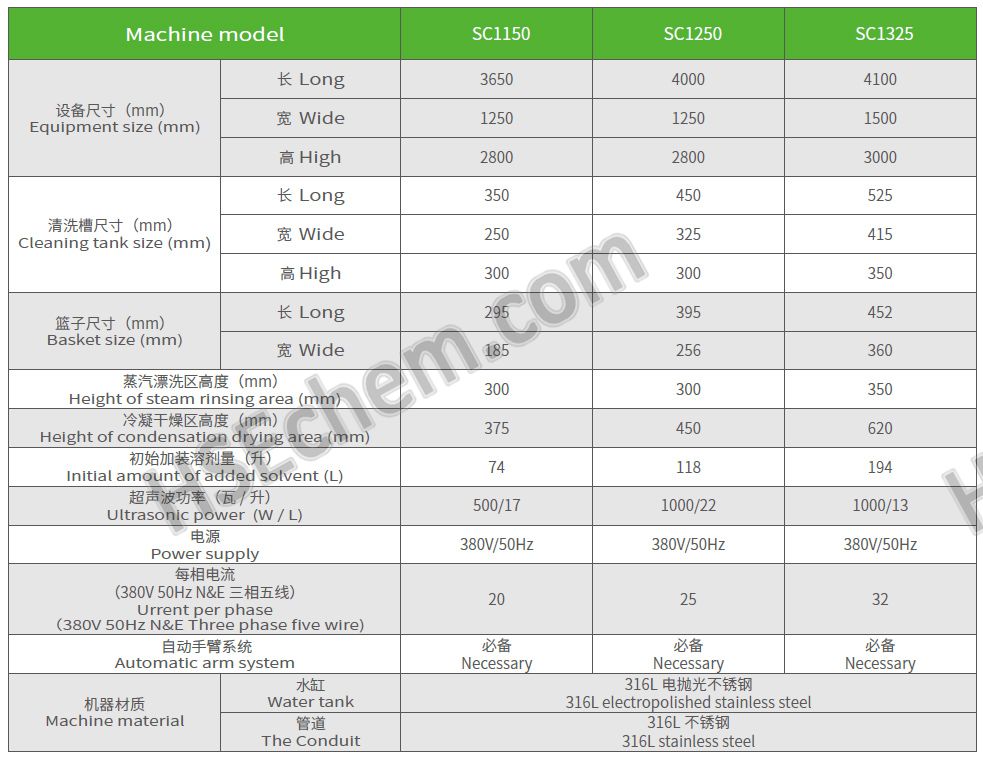

Technincal Parameters:

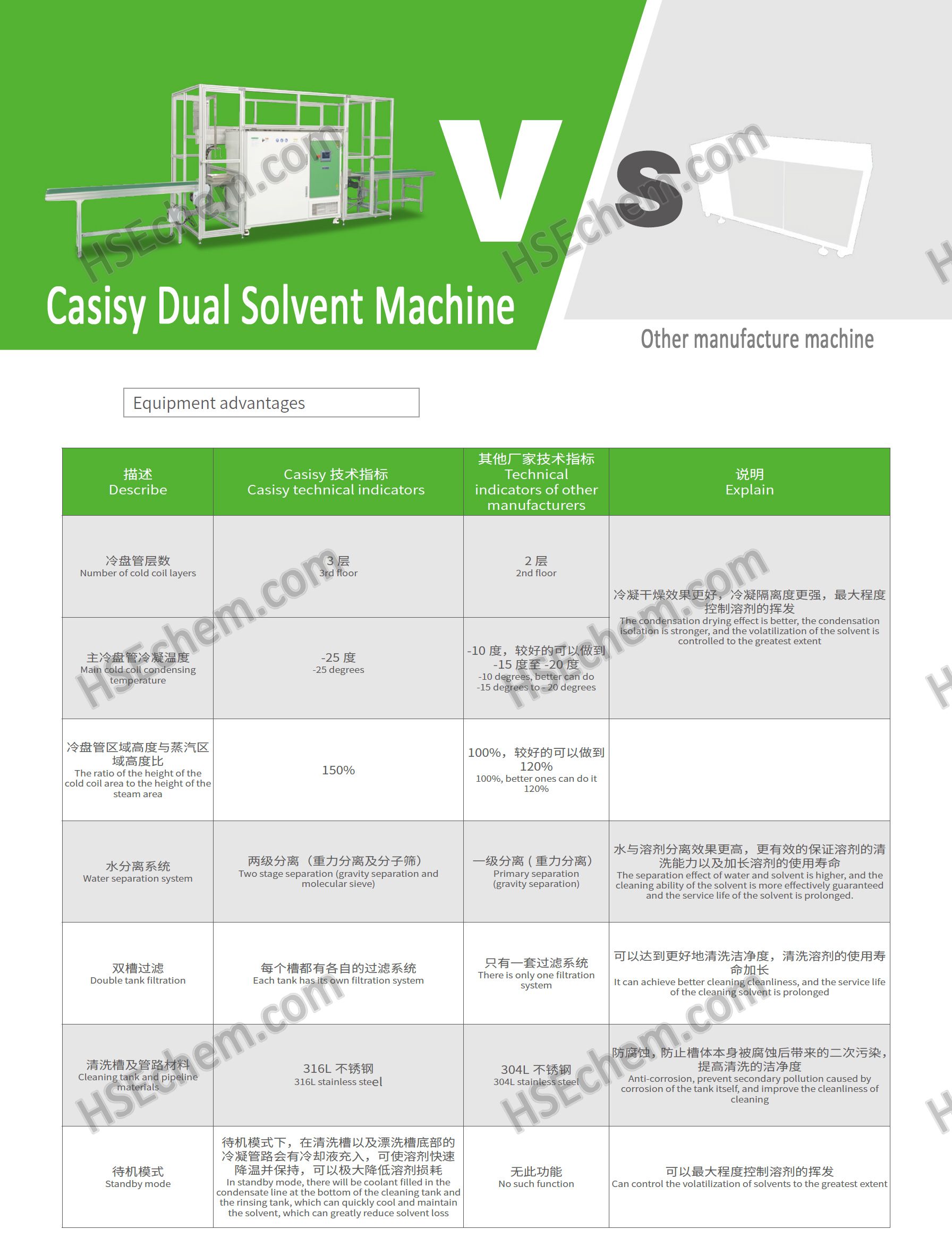

Equipment advantages

Industrial cases
