Description

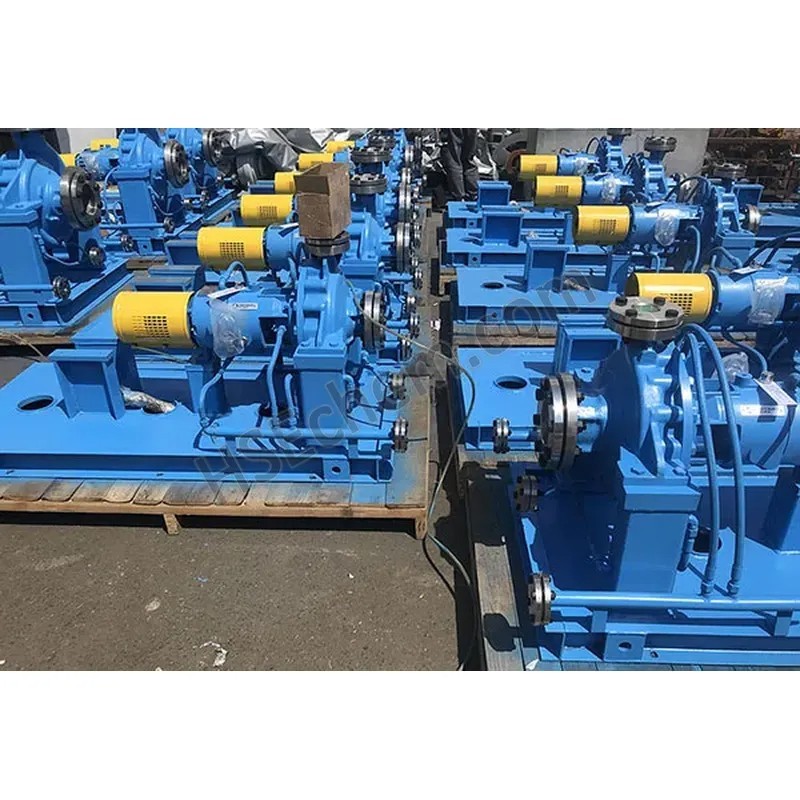

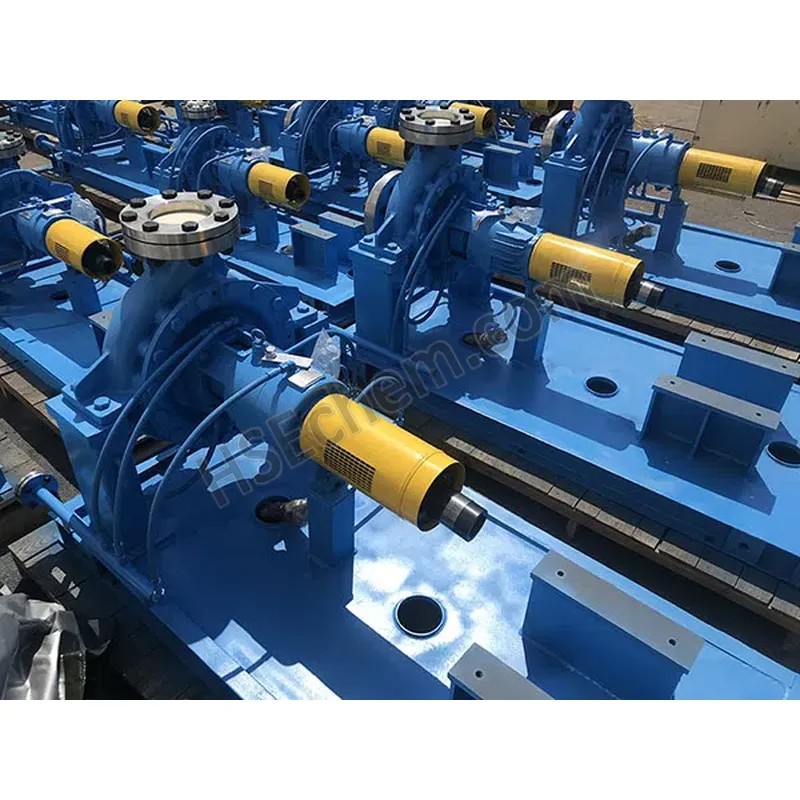

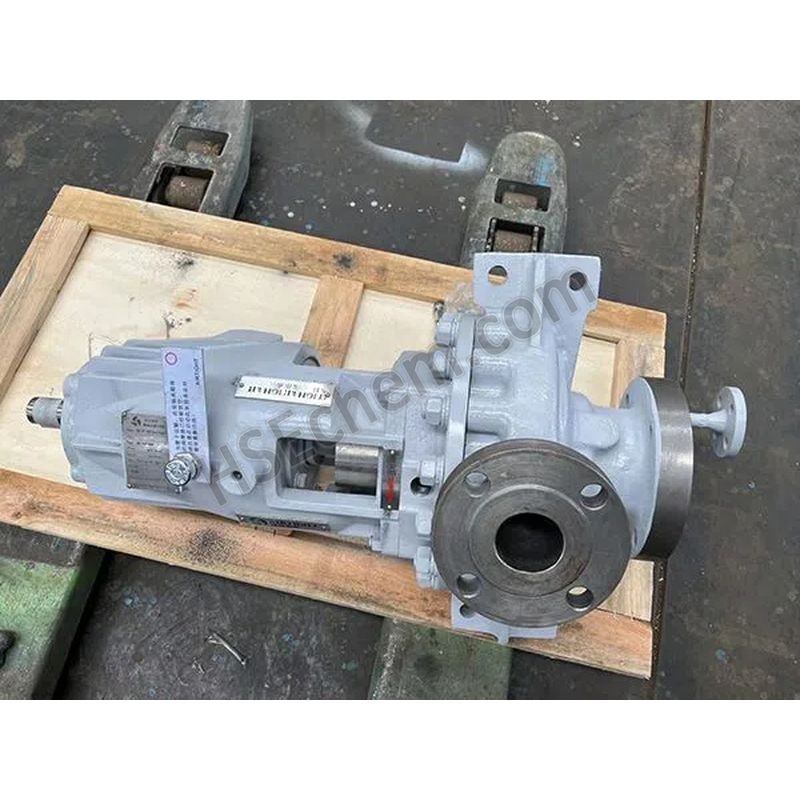

The pump type Sulzer replacement ZE (OH2) is a series of horizontal overhung centerline mounted, single stage, single suction heavy duty centrifugal pumps with diffuser and volute design casings. The design of Sulzer replacement ZE complies with the latest edition of the American Petroleum Institute standard Centrifugal Pumps For General Refinery Services, also known as API 610/ ISO13709. Satisfying this standard, the Sulzer replacement ZE meets the high level performance requested by refineries and petrochemical industries.
Features: Sulzer replacement ZE (OH2)
Single stage overhung design pump – API610 ( OH2 )
Heavy duty, center line mounted, radially split casing
Back-pull out unit design. Pump internals can be taken out without disconnecting suction/delivery piping or moving driver.
Three D CAD model of each pump motor combination is immediately available.
Due to the center line discharge the casing is self-venting.
The impeller is a closed radial design, dynamically balanced and incorporates a wear ring on either side of the impeller.
Diffuser design, reduces radial loads, reduces minimum flow requirements, high efficiency at any duty
Advantages:
1.API 610 11th Edition
2.Temperatures up to 800°F (425°C)
3.Enclosed impeller (investment casting)
4.Excellent interchangeability
5.Standard double volute on greater than 3" suction
Standard material options: S1, S4, S5, S6, S8, C6,A8, D1, D2
Hot Tags: api 610 oh2 centrifugal chemical process pump, China, suppliers, manufacturers, factory, customized, low price, in stock, buy discount, made in China, barrel pump for water, magnetic drive pump design, centrifugal pumps basics, vertical chemical pumps, high temp magnetic drive pump, end suction centrifugal pump
We supply pumps and parts to fit or replace various OEM pumps. Any use of OEM names, trademarks, model numbers, or part numbers is for reference only and does not necessarily imply that we are an authorized distributor or representative of the companies and brands listed.
Features: Sulzer replacement ZE (OH2)
Single stage overhung design pump – API610 ( OH2 )
Heavy duty, center line mounted, radially split casing
Back-pull out unit design. Pump internals can be taken out without disconnecting suction/delivery piping or moving driver.
Three D CAD model of each pump motor combination is immediately available.
Due to the center line discharge the casing is self-venting.
The impeller is a closed radial design, dynamically balanced and incorporates a wear ring on either side of the impeller.
Diffuser design, reduces radial loads, reduces minimum flow requirements, high efficiency at any duty
Advantages:
1.API 610 11th Edition
2.Temperatures up to 800°F (425°C)
3.Enclosed impeller (investment casting)
4.Excellent interchangeability
5.Standard double volute on greater than 3" suction
Standard material options: S1, S4, S5, S6, S8, C6,A8, D1, D2
Hot Tags: api 610 oh2 centrifugal chemical process pump, China, suppliers, manufacturers, factory, customized, low price, in stock, buy discount, made in China, barrel pump for water, magnetic drive pump design, centrifugal pumps basics, vertical chemical pumps, high temp magnetic drive pump, end suction centrifugal pump
We supply pumps and parts to fit or replace various OEM pumps. Any use of OEM names, trademarks, model numbers, or part numbers is for reference only and does not necessarily imply that we are an authorized distributor or representative of the companies and brands listed.
